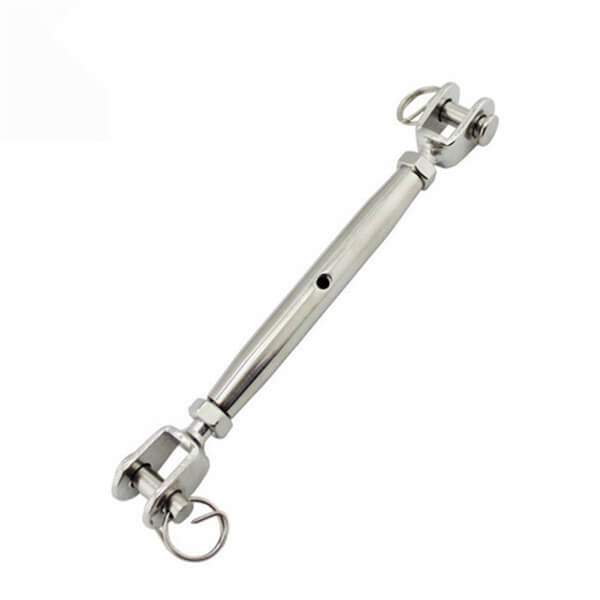

Details of the Closed Stainless Steel Tensioner (Fork-Fork)
Our 3/16 steel cable tensioner was made to last, even in the most challenging conditions. It helps your company maintain stable operations, reducing replacement costs and ensuring safety with every use.
Minimum Quantity
- 1 Pallet, 1 Ton or US$3000
Material Options
- Types of Stainless Steel: 316 or 304
Surface Finishing
- High Polished Surface
Tamanhos Disponíveis
- From M4 to M20
Manufacturing Process
- Body: Reduced / Machined Tube
- Fork: Stamped / Machined / Welded
HS Code: 732690
Main Features
- Removable PinThe design facilitates adjustment on posts or fixed structures and allows easy connection to eyelets or cleats.
- Adjustable Voltage: The tension on the threaded ends (right and left) is easily adjusted by turning the body of the tensioner, making it ideal for tensioning steel cables.
- Common Uses: These tensioners are commonly used in wrestling/boxing rings, garden projects, railings, theaters, and architectural support structures.
Fork-Fork Turnbuckles in Stainless Steel
- This line of turnbuckles ranges from M4 to M20 and is made of high-quality 316 stainless steel for excellent corrosion resistance and durability.
Embalagem, Envio e Pagamento
- Shipping: We carry out most shipments globally by sea. The goods are packed in containers and sent to the port. The customer is responsible for picking up the goods and customs clearance.
- Air Freight: Small quantities or urgent orders can be shipped by air.
- Payment Method: We accept payments by T/T and L/C.
Part Numbers and Specifications
| Part Number | Size (mm) | Dimensions (mm) | Weight (kgs) |
|---|---|---|---|
| hlt0001-0004 | M4 | D1=7, L=110, L1=105, A=8, D2=11, T=17, LGT=1.3, H1=0.04 | 0.04 |
| hlt0001-0005 | M5 | D1=8, L=130, L1=115, A=9, D2=13, T=19, LGT=1.3, H1=0.07 | 0.07 |
| hlt0001-0006 | M6 | D1=9, L=150, L1=140, A=10, D2=14, T=20, LGT=1.75, H1=0.09 | 0.09 |
| hlt0001-0008 | M8 | D1=10, L=165, L1=118, A=11, D2=17, T=24, LGT=1.8, H1=0.16 | 0.16 |
| hlt0001-0010 | M10 | D1=12, L=195, L1=142, A=14, D2=20, T=28, LGT=2.5, H1=0.28 | 0.28 |
| hlt0001-0012 | M12 | D1=15, L=245, L1=142, A=16, D2=21, T=24, LGT=3.0, H1=0.53 | 0.53 |
| hlt0001-0014 | M14 | D1=16, L=275, L1=150, A=17, D2=22, T=25, LGT=3.0, H1=0.63 | 0.63 |
| hlt0001-0016 | M16 | D1=19, L=310, L1=170, A=18, D2=26, T=29, LGT=4.0, H1=1.3 | 1.3 |
| hlt0001-0020 | M20 | D1=21, L=360, L1=190, A=20, D2=33, T=35, LGT=4.5, H1=1.73 | 1.73 |
Choose hqlifting for all your stainless steel turnbuckle needs. We provide durable, high-quality, and corrosion-resistant solutions for your fastening and tensioning projects.
