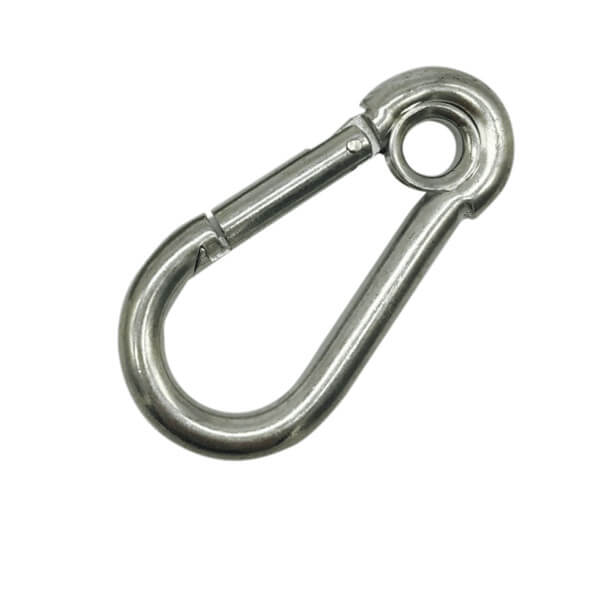

Specifications of the Carabiner DIN5299 Type A
- MOQ: 1 pallet, 1 ton or US$ 3,000
- Material: High-strength steel
- Surface finish: Galvanized
- Size: From 4 mm x 40 mm to 14 mm x 180 mm
- Manufacturing process: Stamping
- Applications: Hiking, camping, and general outdoor use
- Not suitable for lifting loads
- HS Code: 732690
Main features:
This carabiner is designed for quick and easy connections with chains, ropes, terminal links, or other accessories, making it ideal for outdoor use. It provides fast fastening, saving time and effort. Manufactured according to DIN5299 standard, this specific quick-release carabiner does not require forging or heat treatment, making it a more economical option.
Suitable for light tasks, especially for low-quality chains, hiking, camping, general outdoor use, and household applications. However, it is not suitable for load lifting, fall protection, or other critical applications. Be sure to respect the working load limits and inspect regularly.
Applications:
- Maritime transport: We ship globally by sea freight. Your products will be loaded into containers upon arrival at the port. Customs clearance and pickup are the buyer's responsibility.
- Air transport: Small or urgent orders can be shipped by air transport.
- Pagamento: We accept payments by bank transfer (T/T) and letter of credit (L/C).
Specifications of the Carabiner DIN5299 Type A:
Product number | Size (mm) | A | B | C | D | F | Maximum Working Load (kg) | Weight (kg) |
---|---|---|---|---|---|---|---|---|
hlt5299A0004 | 4×40 | 42 | 40 | 75 | 80 | 70 | 580 | 0.005 |
hlt5299A0005 | 5×50 | 52 | 50 | 75 | 100 | 75 | 100 | 0.010 |
hlt5299A0006 | 6×60 | 63 | 60 | 85 | 140 | 85 | 140 | 0.015 |
hlt5299A0007 | 7×70 | 73 | 70 | 87 | 200 | 87 | 200 | 0.020 |
hlt5299A0008 | 8×80 | 84 | 80 | 91 | 250 | 91 | 250 | 0.030 |
hlt5299A0009 | 9×90 | 94 | 90 | 102 | 280 | 102 | 280 | 0.040 |
hlt5299A0010 | 10×100 | 105 | 100 | 105 | 134 | 105 | 340 | 0.050 |
hlt5299A0011 | 11×120 | 115 | 120 | 115 | 163 | 115 | 350 | 0.060 |
hlt5299A0012 | 12×140 | 126 | 140 | 126 | 195 | 126 | 400 | 0.070 |
hlt5299A0013 | 13×160 | 137 | 160 | 137 | 217 | 137 | 500 | 0.085 |
hlt5299A0014 | 14×180 | 148 | 180 | 148 | 230 | 148 | 590 | 0.100 |
Note: This carabiner is not designed for load lifting, fall protection, or any critical application. Be sure to follow the recommended maximum working load limits to ensure safety.
